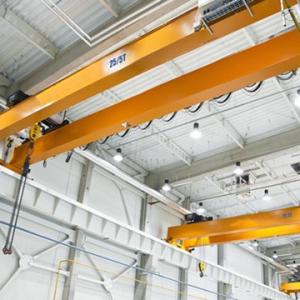

35T European Standard Overhead Crane Double Beam Frequency Inverter Speed Control
Description of Euro Double girder overhead crane
European Standard double girder overhead crane. the main girder includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard.
Crane trolley is assembled with motor, reducer, brake. trolley frame. drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism. This QD double girder overhead crane rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the auxilary used to lift light objects, the auxiliary can also be used for collaborative main hook tilting or tipping the material.
Whole crane before painting will be done the shot blasting, painting totally four layers including the one layer of priming paint, two layers of intermediate coat and one layer of finishing coat.
Technical parameter of Euro Double girder overhead crane
| Lifting Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 |
| Span | | 10.5m~31.5m, and customizable |
| Lifting Height | m | 6m~24m, and customizable |
| Lifting Speed | m/min | 0.8/5 | 0.8/5 | 0.66/4 | 0.53/3.4 | 0.8/3.3 | 0.53/3.2 |
| Trolley Traveling Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane Traveling Speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 |
| Work Duty | | A5 |
| Power Supply | | 380V, 50Hz |
Driver characteristics of Euro Double girder overhead crane
1.Operation of large crane adopts traid frequency conversion driver,thus its operation is smooth and stable.
2.All aluminum housing of driver is small in volume, light in weight, and with good heat radiation performance.
3.Modularized design, direct driver installation, compact structure and high accuracy.
4.Unique electromagnetic design thus efficiently reduces electric current and extends service life.
5.Standard thermo sensitive switch, thus effectively uplifts safety grade.
6.Power input adopts heavy-load connector, thus the unloading is convenience and fast, safe and easy to operate.
Electric control system of Euro Double girder overhead crane
1.Large crane electric control housing adopts standardized design, thus easy to replace and install.
2.Major electric element adopts international well-known brands such as Schneider and Simons etc.
3.Large crane limit standard equipment adopts Italian GG original importing brand, to ensure effectively safe operation and stop of crane.
4.Power supply of crane, big or small, adopts parallel installation of C type steel double track, enables little resistant and stable operation.
Package and delivery
